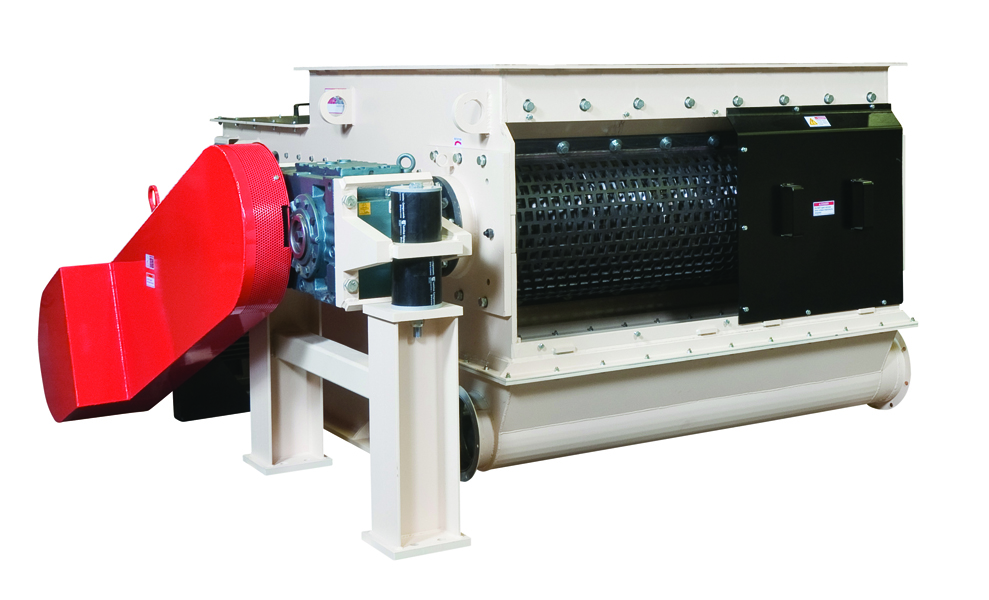

MP SERIES INDUSTRIAL PAPER SHREDDER

High capacity shredder suitable for "drop & go" unattended operation

The economical MP Series Industrial Paper Shredder can process a wide variety of  paper, cardboard, and both hard and soft cover books to any desired particle size. Ruggedly constructed from heavy plate  steel, the MP Series features off the shelf  American made components. The retractable ram-fed design allows for easy in-feed and unattended operation.

Click to enlarge


Typical Applications
  • Paper
  • Cardboard
  • Soft cover books
  • Hard cover books
  • File folders
  • Boxed files
  • Paper cores
  • Secure document destruction
  • Legal Records
  • Medical records
  • Financial records
 Key Features
  • Choice of 12", 15” and 20” rotor diameter each standard with four- way reversible tool-steel cutting teeth
  • Heavy duty grates or perforated screens available in many sizes
  • Serrated anvil made from abrasion resistant steel
  • Programmable electronic system logic with digital read-out
  • Easily adjustable pressure settings and programmable cycle timing for optimum performance
  • All feed hoppers are custom built to suit application
  • Several optional types of discharge conveying equipment available - either pneumatic or mechanical
  • Optional magnets for ferrous metal extraction


For additional information, download File(s):

 request-a-quotation



Request a free test grind



ram fed grinder and finish grinding hammer mill system

Ideal on its own, when you pair the MP with the 13 Series Finish Grinding Hammer Mill, the resulting system can produce a particle size ranging from confetti to a fine lint consistency. At the same time, the 13 Series’ integral fan system not only increases the overall throughput fivefold, it also conveys the processed material to storage.



Sample Materials Processed

 Produce the exact desired particle size by a simple screen change.


 Paper processed through a 13 Series Finish Grinder
