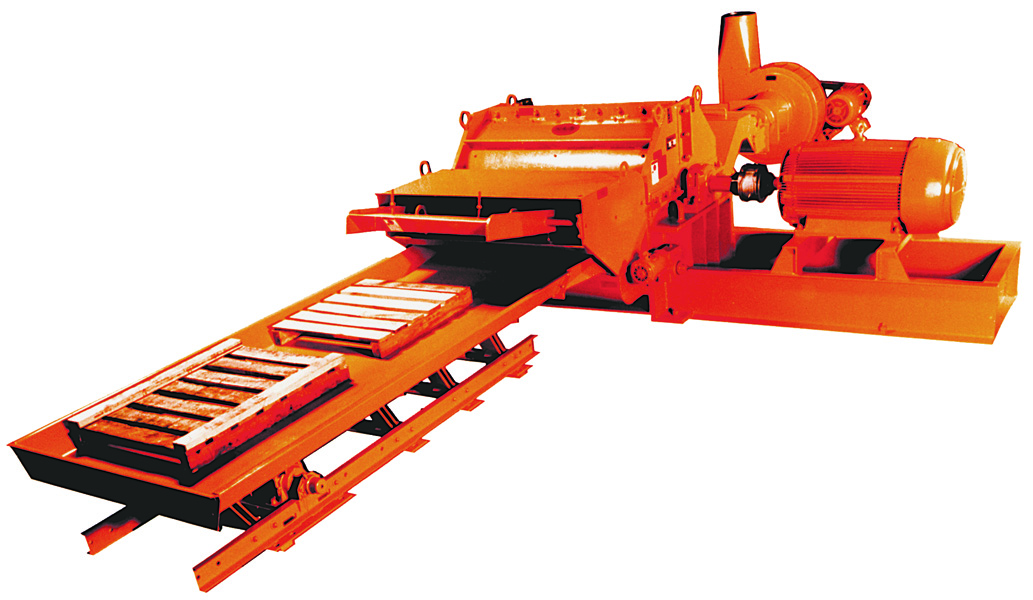

“HOG”ERIZER PALLET AND PALLET SCRAP GRINDER

High production pallet and wood scrap grinder

With capacities surpassing 10 TPH, the Hogerizer Pallet and Pallet Scrap Grinder thoroughly and completely grinds whole or partial pallets to a finely ground mulch in a single pass.  Hump tunnel magnets remove all nails and the powerful material handling fan conveys the clean material to storage. The custom designed electrical controls package allows entire system start up and shut down from a single panel. Built in system logic sequentially starts and stops each individual component.  The Hogerizer is available in three standard sizes. Model 56-35 is designed to easily process whole pallets. The smaller, Model 42-35 and 30-35 efficiently process pallet scrap and individual boards.

Click to enlarge


Typical Applications
  • Pallet recycling
  • Sawmill operations
  • Lumberyard scrap
  • Cabinet shops
  • Custom shipping skids
  • Truss plant scrap
  • Furniture plants
 Key Features
  • 36” rotor diameters operated at 1,800 RPM to produce high hammer tip speed
  • Long wearing, heavy duty grates in sizes from ¾” to 2”.
  • Heavy plate construction, featuring 2” thick side walls and internal replaceable wear plates throughout.
  • Twin internal flywheels
  • Electronic or hydraulic feed roll assembly with counterbalance for consistent in-feed of a variety of material thicknesses.
  • Vibratory in-feed conveyor, self-cleaning magnets, material handling fan and customized electrical controls are standard.
