DUAL STAGE ULTRA FINE GRIND WOOD HAMMER MILL

Reduces pre-hogged or small scrap to fine sawdust or wood flour in one pass.

The FG Series Dual Stage Hammer Mill is designed specifically for producing the finest possible sawdust or wood flour and features two 13 Series hammer mills mounted one over the other.

The FGZ allows the reduction of large blocky wood waste to a fine sawdust in a single pass by mounting an HZF Series hammer mill over a 13 Series hammer mill.

The FG and FGZ are both available in four sizes with combined (upper and lower mill) horsepower of 125 to 500.



Click to enlarge

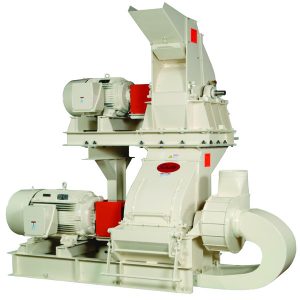

FG - Wood chips to wood flour



Typical Applications
  • Wood flour
  • Composite lumber
  • Animal bedding
  • Biomass boiler fuel
  • Compression lumber
  • Wood pellet preparation
 Key Features
  • Space saving stacked design.
  • Dual rotor assemblies designed specifically for each application.
  • Internal replaceable ribbed liner plates in both mill halves.
  • Many hammer styles to choose from.
  • Heavy duty grates or perforated screens available in a variety of sizes for both mill halves.
  • Powerful material handling fan mounted on main mill shaft of lower mill.


For additional information, download File(s):

request-a-quotation

 Request a free test grind






FGZ (Rear View)  - Trim block to wood flour


FGZ (Front View)

Sample Materials Processed
