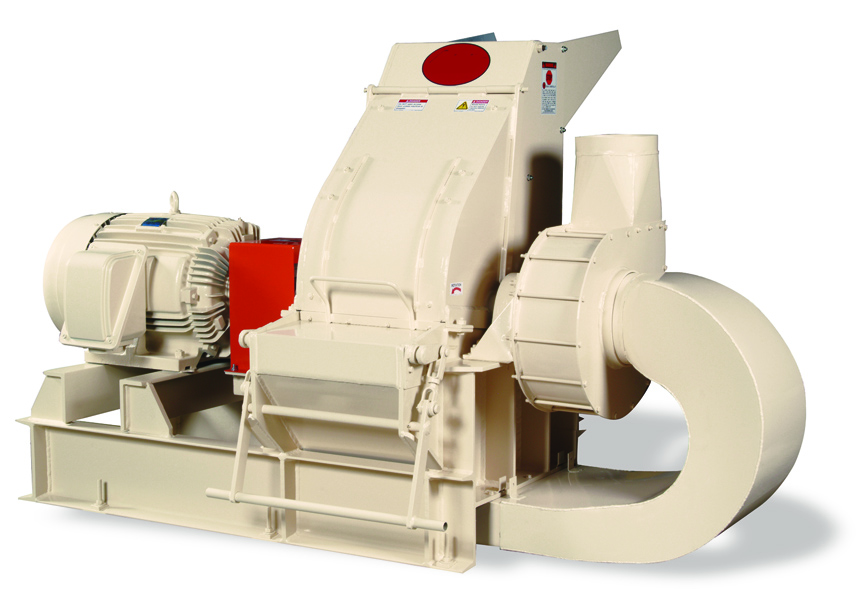

13 SERIES INDUSTRIAL GRINDER – WITH INTEGRAL FAN

Mid-range production hammer mill with economical built-in fan. Reduces a variety of organic and /or fibrous materials to desired size.

Available in four standard sizes with integral fan units (13” to 36” wide), and a larger 48” model that operates with a separately driven fan, the 13 Series have a wide range of applications. The standard mills operates at 3600 RPM and feature a powerful material handling fan which is mounted onto the main mill shaft. With this unique combination only one motor is required to drive both the mill and the fan thereby saving horsepower and valuable floor space.

Click to enlarge

Typical Applications Agricultural products Biomass Cardboard Fiberglass insulation Wood chips Planer shavings Sawdust Paper Fish meal	Key Features 24” rotor diameters operated at 3,600 RPM to produce high hammer tip speed. Screen discharge areas from 475 to 1824 square inches. A variety of perforated screen sizes from .020” to 3.” Variety of fan sizes to match mill's throughput. Heavy plate construction with internal ribbed liner plates. Several four-way reviersible hammer styles to choose from.

For additional information, download File(s): Technical Specs.13Series.pdf — 58Kb	Request a free test grind
Sample Materials Processed alfalfa black cohosh corn echinacea fiber cement masonite fiberglass nettle paper hogged wood scrap planer shavings wood chips (dry or green) bark
