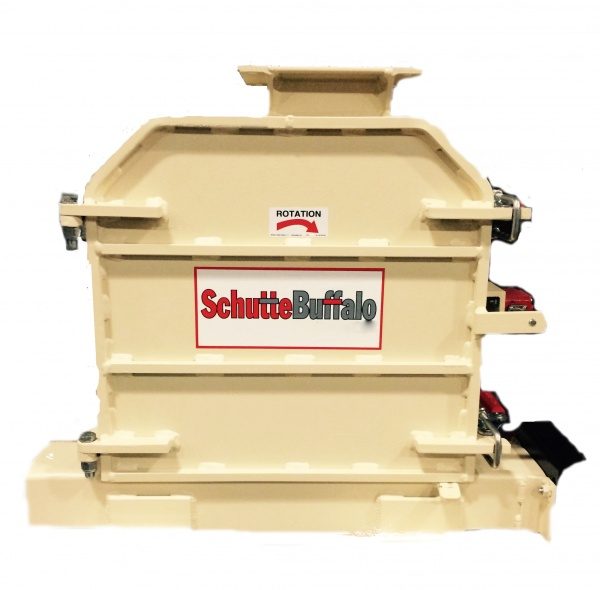

H28 Pilot Scale Circ-U-Flow Hammer Mill

Key Features

  • 5 HP motor
  • 1/4" A-36 plate construction
  • 12" rotor diameter
  • 11,300 ft/min tip speed
  • Optional pneumatic discharge
  • Easy to change screens a variety of sizes
  • Four-way reversible hammers
  • Optional Variable Frequency Drive

Details

The H28 Series Circ-U-Flow is a pilot scale full circle screen hammer mill designed with laboratory testing, and small batch and craft production in mind. This compact unit features the same nearly full circle screen coverage as it's larger Cir-U-Flow cousins, resulting in the highest throughput to horsepower ratio of any style of hammer mill when processing light, low density materials. Available in both carbon and stainless steel models.

Typical Applications

  • Agricultural Products
  • Brewery and Distillery Grains
  • Herbs and Spices
  • Light Wood Chips
  • Meat and Bone Meal
  • Sawdust
