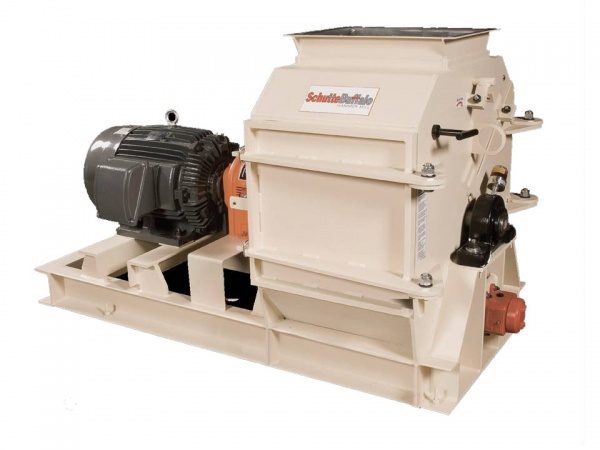

24 Series Circ-U-Flow Hammer Mill

Key Features

  • Four standard mill widths (10”, 15”, 20” and 24") with custom sizes available
  • Screen discharge areas from 600 to 1440 square inches
  • High speed (3600 RPM) rotor assembly with four-way reversible hammers
  • Variety of screen sizes
  • Dual directional rotors
  • Easy access to mill’s interior through dual access doors

Details

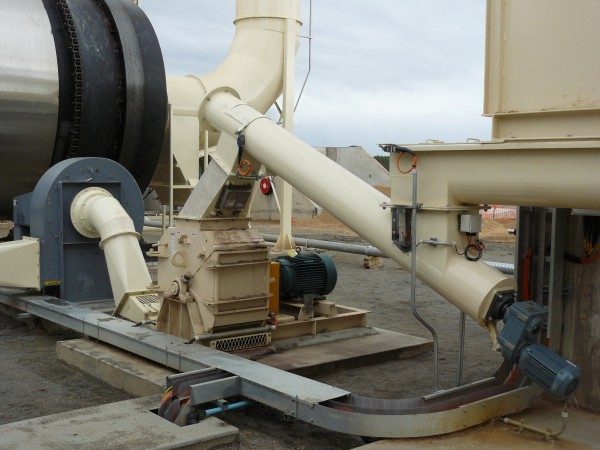

The 24 Series Circ-U-Flow is a high speed, mid-range production, full circle screen hammer mill. The 24 Series hammer mill is designed for efficiently processing agricultural products, feed and grain, light wood waste, and other relatively easy to grind materials. The nearly full circle screen coverage of the rotor translates to a larger screen open area and thus the highest possible production rates on materials that do not require initial grinding against a breaker plate. All models of the 24 series are suitable for either gravity or pneumatic evacuation.

Typical Applications

  • Agricultural Products
  • Animal Bedding
  • Animal Feed
  • Boiler Fuel Conditioning
  • Ethanol Production
  • Herbs and Spices
  • Landscape Mulch
  • Meat and Bone Meal
  • Miscellaneous Grains
