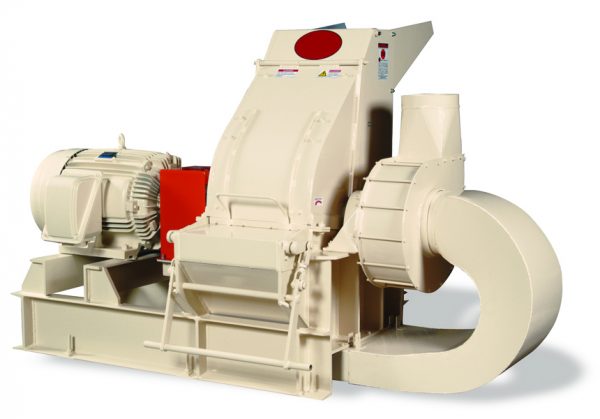

13 Series Industrial Grinding Hammer Mill

Key Features

  • 24” rotor diameters operated at 3,600 RPM to produce high hammer tip speed
  • Available screen discharge areas from 475 to 1824 square inches
  • Available with a variety of perforated screen sizes from .020” to 3.”
  • Variety of fan sizes to match mill's throughput
  • Heavy plate construction with internal ribbed liner plates
  • Four-way reversible hammers available in several styles


The 13 Series Industrial Grinding Hammer Mill is a mid-range production hammer mill with economical built-in fan, able to reduce a variety of organic and /or fibrous materials to the exact desired size. Available in four standard sizes with integral fan units (13” to 36” wide), and a larger 48” model that operates with a separately driven fan. The standard mills operates at 3600 RPM and feature a powerful material handling fan which is mounted onto the main mill shaft.  With this unique combination only one motor is required to drive both the mill and the fan thereby saving horsepower and valuable floor space.


Typical Applications

  • Agricultural Products
  • Biomass
  • Brewery and Distillery Grains
  • Cardboard
  • C&D Waste
  • Fiberglass Insulation
  • Wood Chips
  • Planer Shavings
  • Sawdust
  • Paper
  • Fish Meal
